Injection Molding Machines Sourcing from China
End-to-end machinery procurement covering machine selection, tonnage matching, supplier verification, spare parts management, shipping, and installation coordination.
Procurement Guide
Professional Machine Selection Support
Precise clamping force and tonnage matching tailored to your specific plastic molding specifications.
Factory and Supplier Verification
Rigorous on-site audits to confirm a reliable plastic injection molding machine supplier in China.
Seamless Shipping & After-Sales
Complete logistics, spare parts management, and local installation support powered by Vela Sourcing.
Injection Molding Machine Types & Tonnage Selection Guide
Selecting the correct plastic injection molding machine requires precise alignment between drive technology, clamping force, and production volume. Matching your part geometry, raw materials, and mold dimensions with the ideal equipment spec prevents costly line modifications and ensures optimal cycle times. At Vela Sourcing, our product sourcing team analyzes your CAD drawings, part samples, and target output to screen out unsuitable tonnage and drive configurations before you purchase. When early validation is needed, we also support sample development to confirm the right machine fit before production begins.

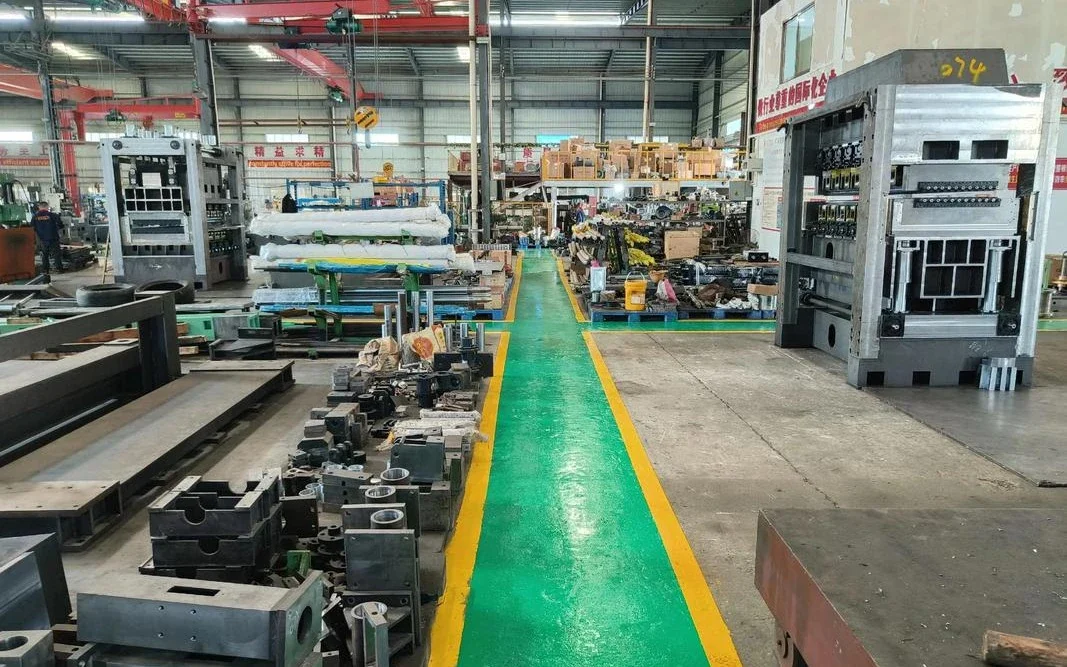

Hydraulic Machines
The traditional industry workhorse offering heavy-duty clamping power and robust reliability for large, thick-walled parts.
Best for: Heavy Structural Parts & Standard Goods
- Ideal Output: High-tonnage, heavy industrial parts, automotive components.
- Budget Fit: Lowest initial capital expenditure and economical initial investment.
- Primary Advantage: Superior clamping force holding high pressures over long cycles.

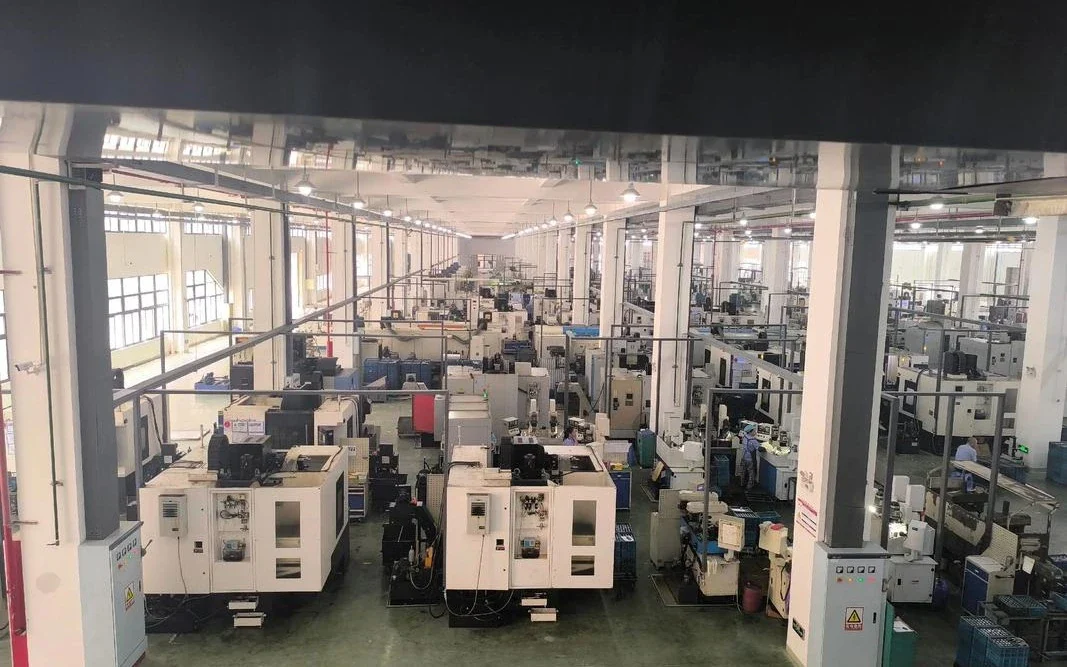

All-Electric Machines
Driven by independent servo motors, offering extreme repeatability, ultra-clean operation, and maximum energy savings.
Best for: High-Precision & Medical Cleanrooms
- Ideal Output: High-precision medical components, cleanroom items, micro-parts.
- Budget Fit: Higher upfront machine investment offset by up to 70% energy reduction.
- Primary Advantage: Zero hydraulic oil contamination risks and lightning-fast cycle times.
Hybrid Machines
Combines hydraulic clamping strength with electric screw drives for continuous high-speed injection capabilities.
Best for: Thin-Wall Packaging & Rapid Cycles
- Ideal Output: Thin-wall packaging, food containers, high-volume closure caps.
- Budget Fit: Balanced mid-tier capital expenditure with fast operational ROI.
- Primary Advantage: High-speed plasticizing alongside robust clamping control.
Clamping Force & Tonnage Selection Guidelines
Clamping force (measured in U.S. tons or kilonewtons) holds the mold closed against internal hydraulic pressure during injection. Standard guidelines recommend calculating roughly 2 to 5 tons per square inch of projected part surface area, adjusted for resin flowability and wall thickness.
| Tonnage Category | Clamping Range | Typical Part Geometry | Target Applications |
|---|---|---|---|
| Small Tonnage | 30T – 200T | Small precision parts, low cavity counts, thin profiles. | Bottle caps, connectors, small personal care housings. |
| Medium Tonnage | 200T – 650T | Multi-cavity molds, medium structural dimensions. | Food containers, housewares, electronic enclosures. |
| Large Tonnage | 650T – 3500T+ | Large surface area, deep-draw items, heavy wall sections. | Automotive bumpers, storage crates, large pallets. |
Essential Technical Machine Specs to Match
Resin Viscosity
High-viscosity engineering plastics like PC or PEEK demand significantly higher clamping forces and injection pressures than standard PE or PP resins.
Shot Weight Ratio
Optimal injection shot weight should remain between 20% and 80% of the machine barrel capacity to prevent polymer degradation.
Tie-Bar Spacing
Verify overall mold dimensions against clear distance between tie bars to guarantee physical mold fitment and automated robotic entry.
Platen Stroke
Ensure sufficient mold opening stroke and ejector stroke to fully clear deep-draw parts during automated parts ejection cycles.
Vela Sourcing reviews your mold design drawings, resin selection, and daily output target to confirm exact machine specs prior to issuing RFP requests to qualified machinery manufacturers. If vendor screening is part of your purchase process, we can extend that review with supplier verification before you commit to a shortlist.
Vela Sourcing reviews mold drawings, resin selection, and daily output targets before issuing RFPs to qualified machinery manufacturers.
Request Tonnage MatchInjection Molding Machine Applications & Production Scenarios
Selecting the right machinery requires matching raw material flow, wall thickness, and cycle time directly to your end application. For teams comparing vendors, our product sourcing process keeps machine selection aligned with output targets, mold specifications, and auxiliary systems. Vela Sourcing reviews your target product requirements, mold specifications, and machine configurations in parallel so your factory receives equipment optimized for immediate, high-yield mass production.
Packaging & Thin-Wall Parts
High-speed, multi-cavity production for bottle caps, food trays, storage containers, and thin-wall packaging lines used in private-label packaging requiring ultra-fast cycle times and high injection pressure.
- Cycle: < 5–8 seconds
- Wall: 0.4 mm – 1.2 mm
- Materials: PP, PET, HDPE
- Feature: Nitrogen Accumulators
Consumer & Household Goods
Cosmetic housings, kitchenware, personal care enclosures, and home hardware that demand flawless surface finishes, stable part dimensions, and energy efficiency.
- Cycle: 15 – 35 seconds
- Wall: 1.5 mm – 3.0 mm
- Materials: ABS, PS, PC, HIPS
- Feature: Class-A Cosmetic Finish
Industrial & Engineering Components
Structural housings, electrical connectors, automotive fittings, and functional gear assemblies engineered for strict tolerances and high mechanical strength.
- Cycle: 25 – 60 seconds
- Wall: 2.0 mm – 5.0 mm
- Materials: PA66+GF, PBT, POM, PC
- Feature: Bimetallic Wear Resistance
Trial Runs to Full Mass Production
Flexible machine configurations that support mold trial validation, low-volume pilot runs, and rapid scale-up to continuous multi-shift production lines.
- Capacity: Pilot to 1M+ Units/Mo
- Validation: T0–T1 Mold Trials
- Automation: Robot Interface Ready
- Reliability: 24/7 Continuous Duty
Matching Machine Parameters to Real-World Application Demands
| Application Sector | Primary Resin Types | Core Machine Requirement | Essential Auxiliary Units |
|---|---|---|---|
| Thin-Wall Packaging | PP, PET, HDPE | High-speed injection accumulators, fast-response valves | High-tonnage chiller, side-entry robot arm |
| Consumer Products | ABS, HIPS, PC/ABS | Servo-hydraulic energy-saving drives, stable clamping | Desiccant hopper dryer, mold temperature controller |
| Industrial & Automotive | PA66+GF, POM, PBT | Bimetallic screw/barrel, high plasticizing torque | High-temp oil heater, automated material loader |
For teams comparing vendors, our product sourcing process keeps machine selection aligned with output targets, mold specifications, and auxiliary systems—including private-label packaging lines that need ultra-fast cycles.
Supplier Verification & Factory Audit
Procuring injection molding machines from China requires far more than comparing initial price quotes. Manufacturer capabilities, rigorous supplier verification, and a verified export track record directly dictate whether your machinery arrives on spec and delivers stable, long-term performance on your factory floor.
Verification Dimensions
Every prospective plastic injection molding machine supplier must pass three non-negotiable operational checks prior to commercial negotiations.
- Factory licensing: Legally verified business registrations, machinery manufacturing permits, and authentic export qualifications.
- Production capacity: Validated plant square footage, active assembly lines, real-time work in progress, and annual machine output.
- Key component sourcing: Traceable origins for high-wear parts, including servo drives, PLCs, hydraulic pumps, valves, and screw barrels.
Equipment Capability
True machine reliability is established on the assembly floor, not in marketing catalogs. Three technical benchmarks reveal actual manufacturing quality.
- Machining precision: Strict physical tolerance controls across platens, tie-bar parallelism, and injection unit alignment.
- Assembly quality: Standardized wiring layouts, structural frame weld integrity, and flushing protocols for hydraulic oil systems.
- Stability testing: Multi-hour continuous dry-run testing, repeatable pressure logging, and verified pre-shipment inspection logs.
How Vela Sourcing Controls Procurement Risk
Vela Sourcing performs comprehensive supplier background checks and quality inspections on every machinery sourcing project. We bridge the gap between overseas buyers and Chinese factories to guarantee equipment performance before full payment is released.
- Full factory audits and independent third-party pre-shipment inspections
- Component traceability verification for core hydraulic, electrical, and mechanical parts
- Rigorous contract reviews covering detailed technical specs and warranty terms
- In-person or video-documented testing of machines prior to final dispatch
Critical Pitfalls to Avoid in Overseas Machine Sourcing
Refurbished Machinery
Used or retired equipment repainted and resold as new, masking internal mechanical wear and offering no genuine manufacturer warranty.
Assembled Hybrid Units
Machines put together using mismatched surplus parts without standardized engineering, triggering frequent breakdown risks and component failures.
Why Factory Audits Are Critical
China is home to thousands of industrial machinery manufacturers, ranging from top-tier original equipment manufacturers (OEMs) with world-class R&D capabilities to small-scale assembly shops sourcing low-cost components from unverified suppliers. Navigating this landscape without a structured factory audit strategy makes it nearly impossible for global buyers to assess real quality based solely on website claims or product spec sheets.
A professional factory audit for plastic injection molding machine suppliers evaluates essential manufacturing variables: machining center precision, assembly floor organization, quality management procedures (such as ISO certifications), and testing equipment calibration. Furthermore, it verifies whether the factory’s physical scale, headcount, and active production floor match their quoted capacity, protecting buyers from trading companies posing as direct manufacturers.
Beyond basic facility assessments, supplier verification focuses on the bill of materials (BOM). Premium injection molding machines rely on stable, brand-name components—such as Techmation or Phase controllers, Yuken or Rexroth hydraulic valves, and Inovance or Phase servo systems. Confirming that genuine components are installed prevents performance degradation, overheating, and premature component failure during high-volume production runs.
Vela Sourcing verifies manufacturing capability, export history, and after-sales readiness before you commit capital to a machine purchase.
Key Technical Parameters & Configuration Comparison
Evaluating injection molding machine specifications requires looking beyond surface-level spec sheets. Understanding how core mechanical capabilities, control systems, and factory interface requirements align ensures you select machinery optimized for your specific cycle times, part tolerances, and operational footprint in China. For buyers managing broader product sourcing programs, this alignment helps reduce downstream rework.
Core Mechanical & Hydraulic Parameters
The mechanical force needed to hold mold halves firmly closed against internal hydraulic injection pressure during the molding phase.
Prevents flash, parting line defects, and dimensional variance across multi-cavity tooling.
The maximum mass or volume of molten polymer delivered into the mold core during a single forward screw stroke.
Determines maximum part envelope; essential for evaluating clamping force versus shot size balances.
Control Architecture, Precision & Energy Consumption
Selecting an energy saving machine requires examining controller response times, drive architectures, and servo feedback loops. Advanced control systems minimize scrap rates, enforce strict part repeatability, and deliver lower total cost of ownership. Proper production follow-up after installation helps verify those gains on the shop floor.
Control System Dynamics High-speed closed-loop microprocessors track transducer signals in real time, delivering multi-stage injection speed profiles and smooth pack-and-hold transitions.
Repeatability & Protection Precise servo control maintains shot weight repeatability within tight tolerances while offering sensitive low-pressure mold protection against un-ejected parts.
Energy Efficiency Ratios Servo-hydraulic and electric drives adjust power consumption dynamically based on phase requirements, reducing electricity costs by 30% to 70% over standard pumps.
Parameter Specification Impact Matrix
| Specification Parameter | Under-Specified Risk | Over-Specified Risk | Operational Result |
|---|---|---|---|
| Clamping Force (Tonnage) | Severe part flashing, mold deflection, material leakage | Excessive machinery cost, mold damage, high energy usage | Part structural integrity & tight tolerance sealing |
| Injection Pressure | Short shots, internal sink marks, incomplete cavity filling | Material degradation, stress whitening, accelerated mold wear | Thin-wall filling capability & flawless surface finish |
| Plasticizing Rate | Extended cooling delays, throughput bottlenecks | Resin overheating, thermal degradation, color streaks | Optimized continuous cycle times & uniform melt quality |
| Tie-Bar Clearance | Inability to mount wide molds, blocked automation access | Unnecessarily large footprint & higher factory floor requirements | Seamless tooling installation & efficient robotic pick-up |
Auxiliary Equipment Integration
A seamless injection molding line requires matching downstream auxiliary equipment using standard communication protocols (such as Euromap / OPC UA) and hardware connections.
- Dehumidifying Dryers & Loaders: Synchronized power systems and automated material feed level sensing.
- Industrial Chillers & MTCs: Integrated manifold monitoring for exact mold temperature control.
- Automation & Robotics: Standardized Euromap 67/73 interfaces for smooth part extraction and stacking.
Pre-Purchase Factory Readiness Checklist
Before issuing POs to Chinese machinery suppliers, audit equipment requirements against your facility conditions to avoid expensive post-delivery retrofits. These checks are especially important for tableware wholesale production, where cycle stability and surface quality directly affect margin.
- Voltage/Freq: Verify regional power compatibility (e.g., 480V 60Hz vs 380V 50Hz) and transformer needs.
- Mold Dimensions: Confirm min/max mold height, ejector pin spacing, and locating ring dimensions.
- Floor Layout: Check crane hook clearance height, floor weight ratings, and operator maintenance space.
We translate buyer performance expectations into clear, enforceable machine purchase specifications before factory FAT.
Spare Parts, Installation, and After-Sales Support
Sourcing industrial machinery from China requires guaranteed operational continuity on your factory floor. Vela Sourcing integrates machine arrival, field installation, operator training, and critical spare parts management into a single, seamless product sourcing delivery process.
Critical Spare Parts Supply Chain
Preventing costly downtime requires instant access to high-wear component packages. Vela Sourcing standardizes original replacement parts tailored to your injection molding machine specifications prior to final packing and shipping.
- Wear & Plasticizing Components: Bimetallic screws, alloy barrels, check valves, nozzle tips, and ceramic heating bands.
- Electrical & Control Units: Original PLCs, temperature control modules, linear scale transducers, and touch-screen HMI panels.
- Hydraulic Seals & Valves: High-pressure seal kits, proportional directional valves, hydraulic hoses, and oil filter cartridges.
Installation & On-Site Commissioning
Proper machine setup protects long-term clamping precision and operational stability. We coordinate qualified field engineers and factory technicians to supervise machine assembly, leveling, and initial system power-up.
- Utility Matching: Verifying local facility voltage, power frequency, water cooling flow rates, and air pressure supply.
- Precision Leveling: Exact frame leveling to prevent premature tie-bar wear and platen misalignment over high-volume production.
- Trial Runs: Dry-cycling and resin load tests to verify injection pressure stability, clamp speed, and cycle time targets.
Operator Training & Troubleshooting Protocols
Equipment productivity relies heavily on plant personnel capability. Vela Sourcing organizes structured technical training programs for your operators and maintenance teams to ensure smooth daily production and high yield.
- HMI Controller Operation: Parameter profile setup, mold recipe storage, ejection timing, and core-pull sequencing.
- Preventive Maintenance: Daily lubrication schedules, hydraulic fluid cleanliness testing, and tie-bar stress checks.
- Troubleshooting Support: Fast diagnosis of short shots, flash, sink marks, thermal degradation, and alarm codes.
After-Sales Protection & Technical Support
Our responsibility goes far beyond initial factory dispatch. We provide structured production follow-up communication channels to address technical issues, dispatch emergency spare components, and protect your equipment investment.
- Remote Diagnostics: Video-guided PLC assistance and parameter troubleshooting directly with OEM master engineers.
- Spare Parts Resupply: Fast-track dispatch of original replacement components to keep production lines running.
- Warranty Claims Management: Direct coordination with Chinese machine builders to resolve hardware claims quickly.
Treating Installation and Spare Parts as Core Delivery Pillars
Unlike ordinary export brokers who step away once equipment ships, Vela Sourcing views installation, spare parts availability, and production hand-off as essential procurement milestones. We connect Chinese injection molding machinery manufacturers with your global plant operations for long-term stability.
Our warehousing and shipping coordination aligns spare kits, packing, and destination readiness before machines leave the factory.
Critical Spares Ready
Seal kits, heaters, nozzles, and wear parts planned into the delivery package to protect uptime after commissioning.
Procurement Process & Delivery Path
Vela Sourcing structures complex machinery purchasing into five clear, manageable milestones—giving you full visibility from initial specification to factory commissioning through our product sourcing service.
Requirement & Data Intake
Submit part drawings, resin specifications, mold dimensions, and target output rates for initial technical evaluation. Technical Brief & Machine Parameter Requirements
Tonnage Match & Quote Comparison
Calculate required clamping force, screen qualified Chinese manufacturers, and evaluate itemized commercial offers through our supplier verification service. Comparative Supplier & Spec Matrix
Supplier Audit & Sample Approval
Verify factory credentials, inspect core component origins, and review test-run sample parts with our sample development service before committing. Factory Audit Report & Mold Trial Approval
Production Tracking & Factory FAT
Monitor manufacturing progress, verify electrical and mechanical specs, and perform pre-shipment factory acceptance testing. Pre-Shipment Inspection & FAT Sign-Off
Logistics, Spares & On-Site Setup
Coordinate heavy machinery packaging, international freight, spare parts kits, and installation support at your facility. Delivered Machine & Commissioning Package
Structured Risk Control for Cross-Border Equipment Sourcing
Vela Sourcing converts complex machinery purchasing into clear, accountable stages. We bridge communication gaps, verify technical compliance, and ensure your injection molding line arrives fully prepared for production.
Factory FAT and line readiness are backed by quality inspection and production follow-up so shipment only proceeds after acceptance criteria clear.
Injection Molding Machines FAQ
Direct answers to critical equipment sourcing questions, backed by real-world project experience from Vela Sourcing to simplify your sourcing from China.
How can I tell whether the tonnage is sufficient for my product?
Calculate total projected surface area multiplied by the required cavity pressure. Vela Sourcing reviews your 3D CAD drawings, material flow requirements, and mold cavity count to verify clamping force specifications before placing machine orders, preventing costly under-tonnage flash or over-tonnage line inefficiency.
How do I choose between all-electric and hydraulic machines?
Choose all-electric for ultra-precision, cleanrooms, and energy efficiency; select hydraulic or servo-hydraulic for high tonnage and heavy-duty parts. All-electric units yield up to 70% energy savings and tight tolerances, whereas hydraulic systems provide higher clamping forces at a lower capital expenditure.
Does the equipment voltage match my local factory standard?
Yes, machines are custom-configured to your facility’s local electrical standards prior to assembly. Vela Sourcing cross-checks factory voltage (e.g., 480V 60Hz in the US vs. 380V 50Hz in China) and control transformer configurations to guarantee seamless plug-and-play installation without field rewiring.
How are spare parts and after-sales maintenance handled internationally?
We bundle critical wear parts with initial shipment and coordinate global technical support. Standard components use internationally recognized brands (like Schneider, Rexroth, or Omron) for local off-the-shelf availability, while custom replacement parts are dispatched via fast-track air freight. We also arrange production follow-up support to help keep service issues from slowing down your launch.
Is installation support and shipping coordination included?
Full end-to-end logistics tracking and commissioning oversight are standard in our procurement program. Vela Sourcing manages heavy-machinery container loading, warehousing and shipping , customs compliance, and dispatches field engineers or remote commissioning guides to ensure rapid production launch.
Need Expert Procurement Support?
Avoid costly equipment mismatches. Vela Sourcing provides direct factory audits, tonnage validation, and full export compliance for injection molding machinery.
Start Your Sourcing PlanGet Your Custom Machinery Sourcing Plan
Share your part drawings, target production volume, budget, and factory power specs. Vela Sourcing will match the ideal equipment through our product sourcing process and initiate supplier verification within 24 hours.
Contact Vela Sourcing Team
- WhatsApp: +86 13954091520
- Email: sales@velasourcing.com
- Address: No. 1120, Shunhua Road Subdistrict, Lixia District, Jinan City, Shandong Province, China
Trust Signals
- Guaranteed response within 24 business hours
- Free initial tonnage & drive-type matching
- Factory audit + FAT & installation coordination
